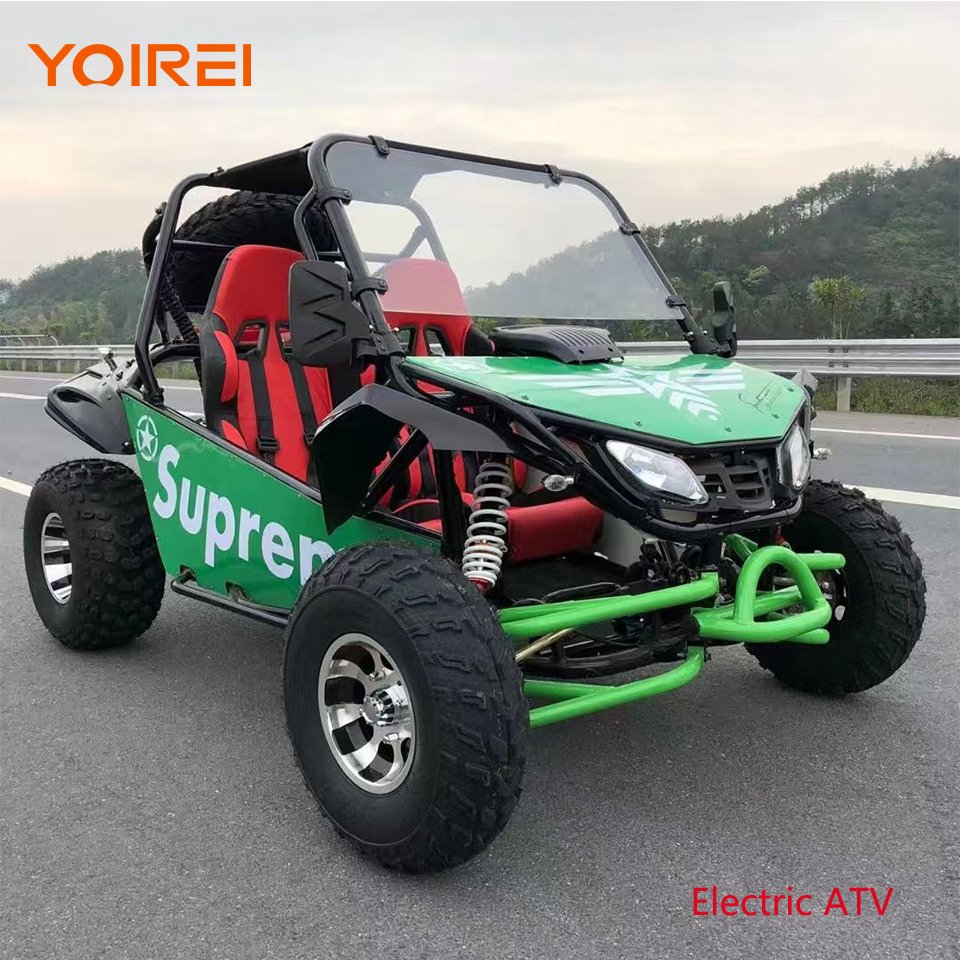

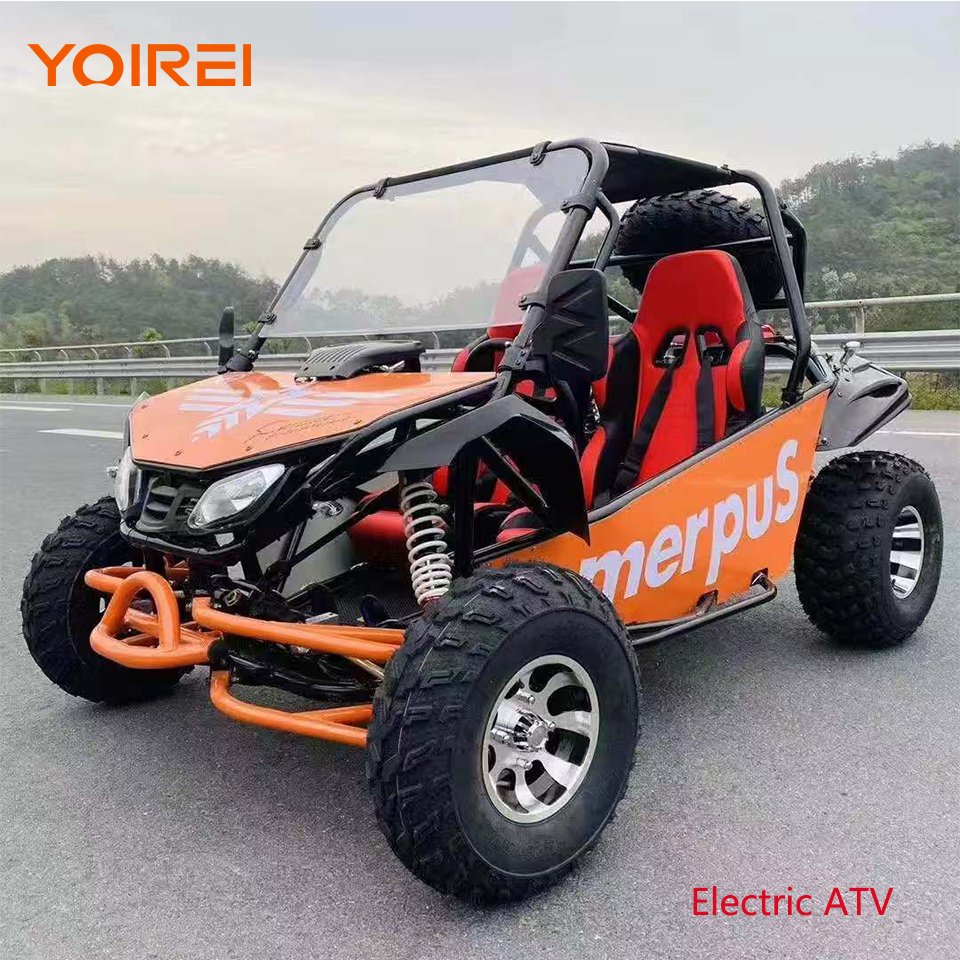

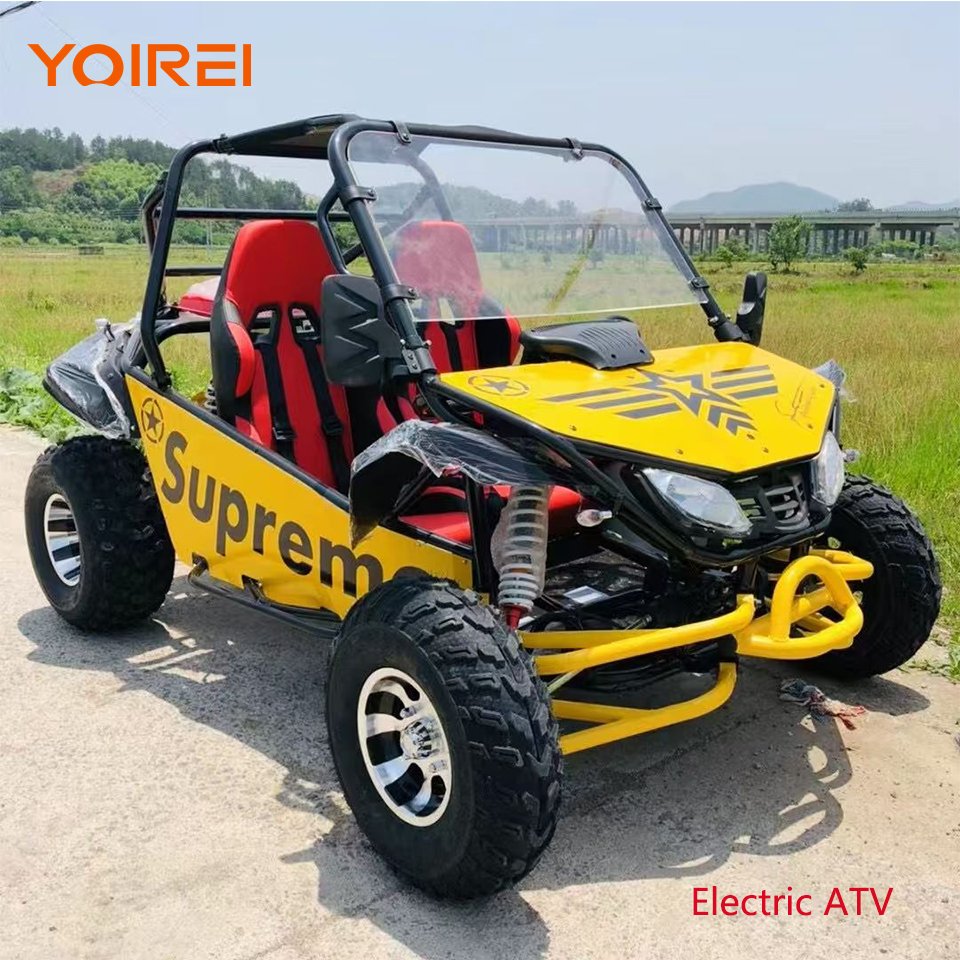

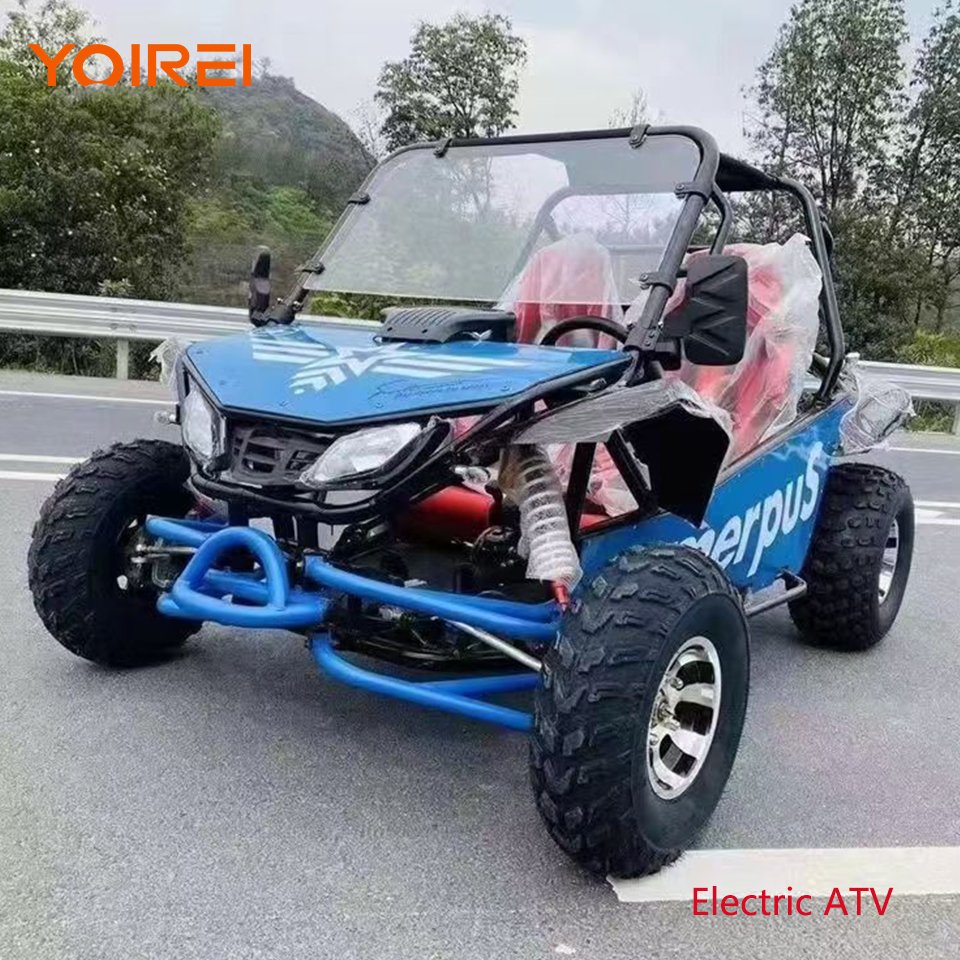

Electric ATV

Electric ATV

Motor: 72v2200w brushless power motor

Battery: 72v52a Chaowei brand lead-acid battery

Starting method: electric start

Transmission system: shaft drive

Speed change: stepless speed change D-N-R

Brake type: four-wheel hydraulic disc brake

Cruising range: about 60km

Charging time: about 4-6 hours

Seat height: 450mm

Ground clearance: 260mm

Vehicle net weight: 280kg

Max. load: 200kg

Maximum speed: >40km/h

Wheelbase: 1760mm

Shock absorption: airbag shock absorption

Tire specifications: 10-inch aluminum wheel/vacuum tire

Appearance size: 2550*1550*1480mm, 2.7/square meters per unit

Packaging size: 2350*1420*880mm

Gross weight 250kg/unit

Default configuration: windshield, top cover(cloth)
